DEPTH AND WIDTH CALIPER

Nơi sản xuất:

SEALTOOL Hong Kong

Giá sản phẩm:

liên hệ

Đặt hàng tối thiểu:

Mô tả chi tiết

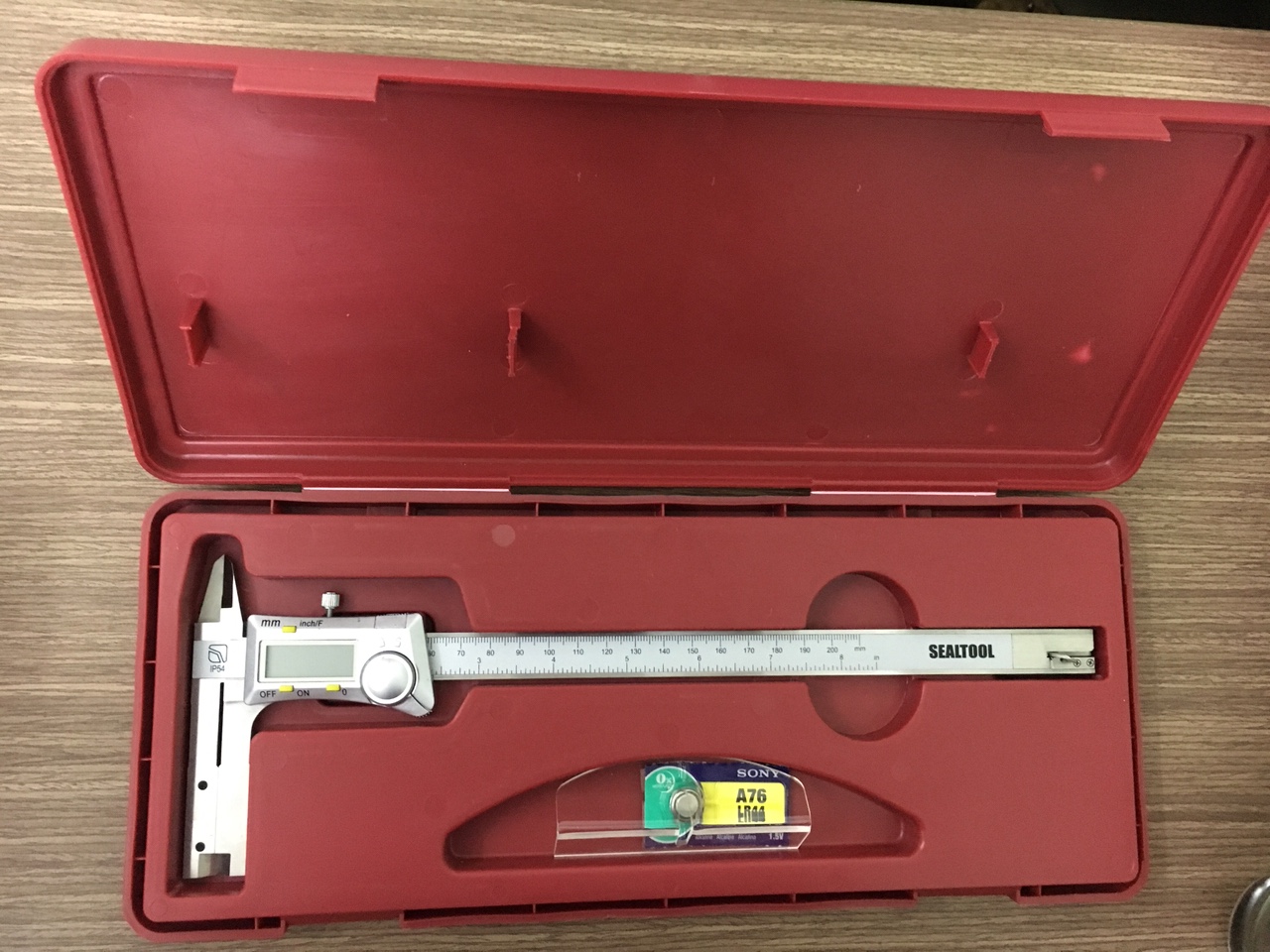

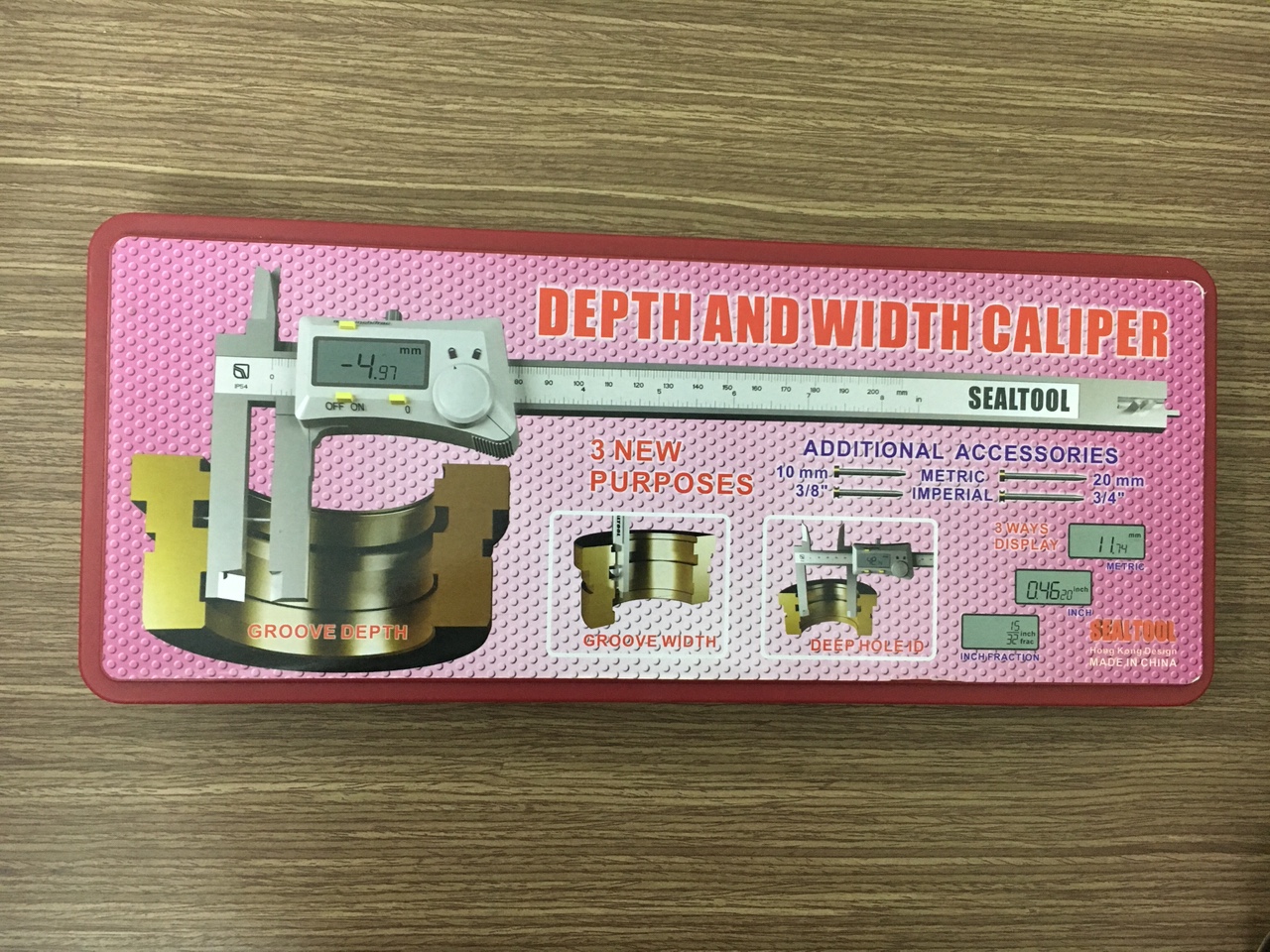

Depth & Width Caliper mainly has three measuring functions: inner groove depth, inner groove width and deep bore diameter. It is specially designed for measuring the dimensions of seal groove. Digital display includes metric(mm), inch(decimal) and inch(fraction).

Instructions for use:

a. Depth

1. Pick out one pin at the backside: 3/8” , 3/4”10mm or20mm,

2. Insert into the proper hole, press on a flat metal surface, then reset to zero

3. Put the caliper in the groove and push forward the pin until it reaches the very bottom

4. The negative value displayed on the caliper is the depth of the groove.

b. Width

1. Push the jaws at the tail of the Caliper into the groove with no less than 17mm, and then get the width measurement value directly.
